Chips
7min
Chips are sleek and efficient components that seamlessly capture user input, attributes, or actions. These versatile chips empower users to effortlessly provide information, make precise selections, refine content, or effortlessly initiate actions.

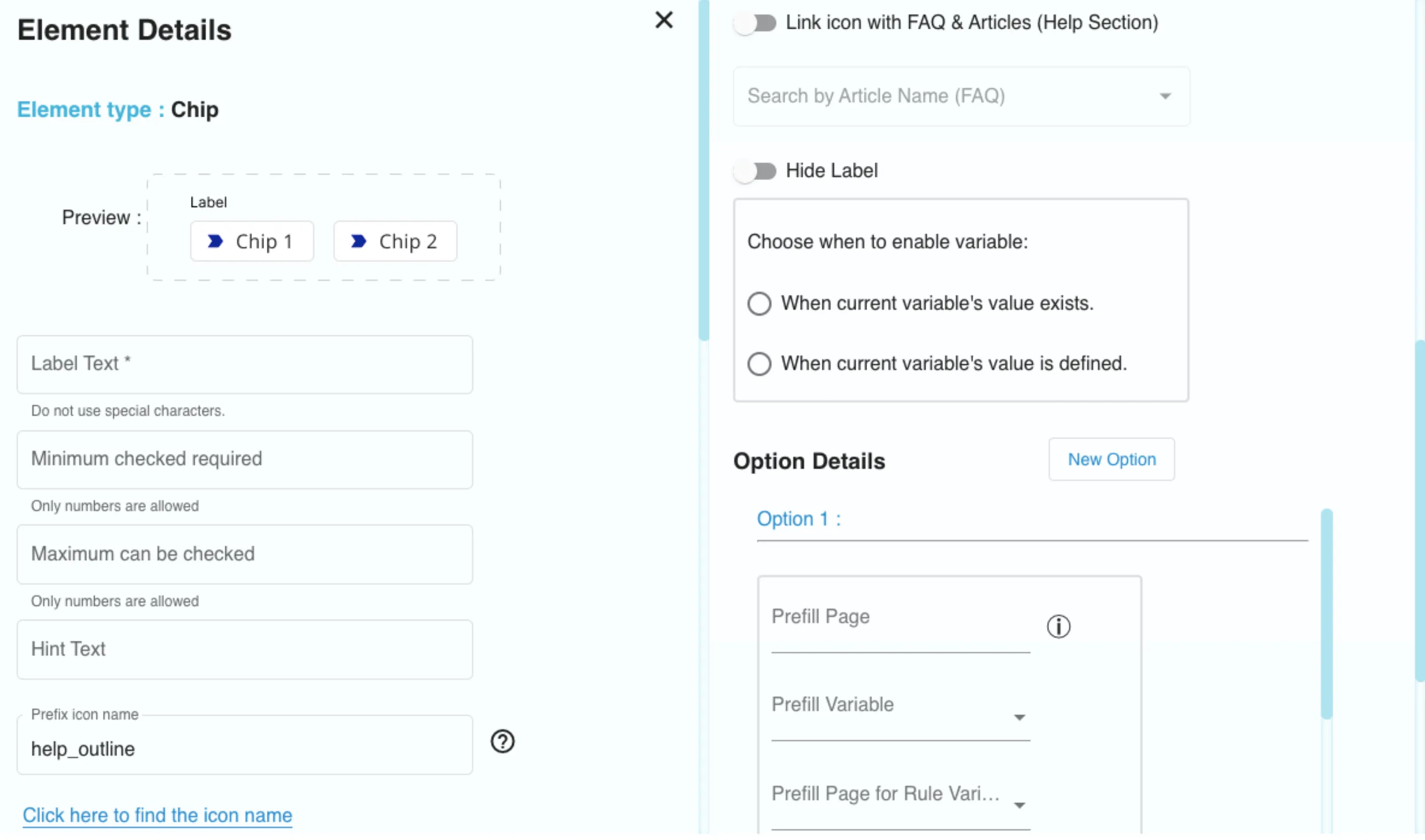

Element Details of Chips
ο»Ώ
- Label Text: Label text is entered here.
- Minimum checked required: The minimum number of options that can be checked in our checkbox is mentioned here.
- Maximum can be checked: The maximum number of options that can be checked in our checkbox is mentioned here.
- Hint text: This is used so that the user can better understand what the element is used for.
- Prefix icon name: The desired prefix icon can be configured from here. It can be used from Google fonts and icons and also from other sources.
This is used to select when to enable the variable depending on the condition such as:Β
- To enable when the current variableβs value exists.
- To enable when the current variableβs value is defined.

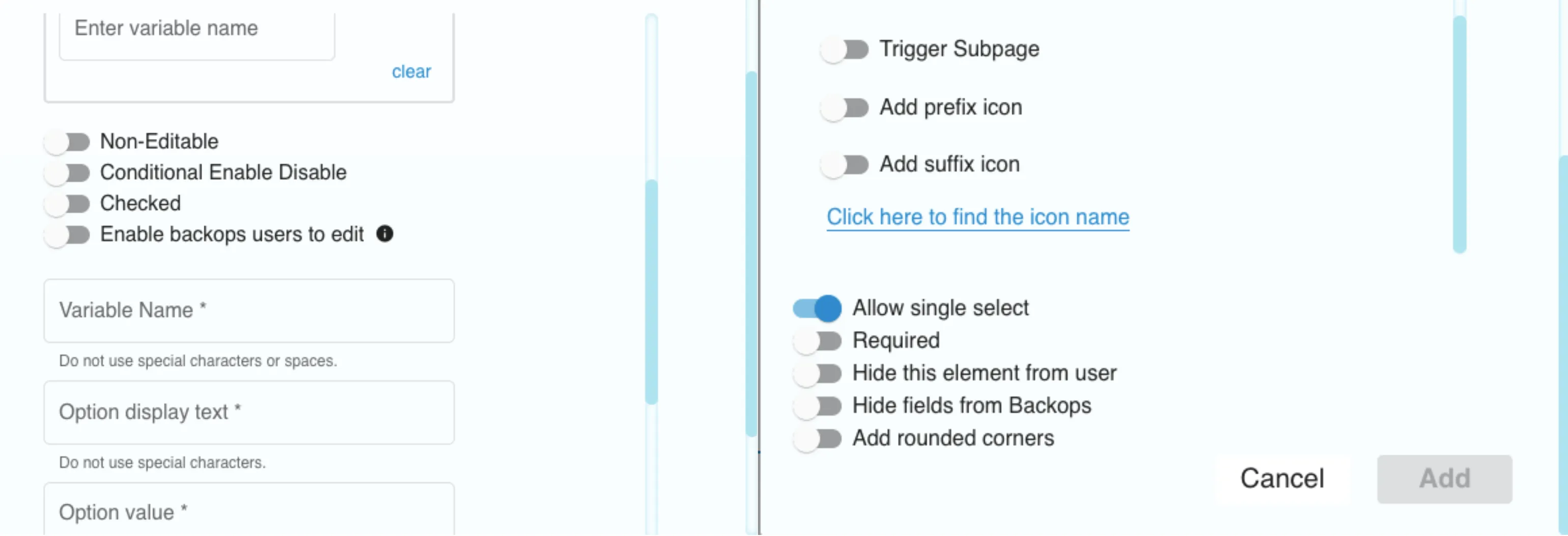

Element Details of Chips
ο»Ώ
- Prefill Page: The page from the flow that we want to pull the prefill data can be chosen.
- Prefill Variable: The prefill variable can be chosen from the prefill page using this drop-down.
- Prefill Page for Rule Variable(Arithmetic): This dropdown is used to select the rule page forΒ prefill items.
- Enter variable name: This is used to enter the prefill rule page variable.
- Variable Name: The variable name can be configured to identify the element.
- Option display text: The text to be displayed for the option can be configured from here.
- Option value: The value for the variable can be configured from here.
- Trigger Subpage Toggle: This toggle can be enabled for triggering a subpage by selecting the subpage from the dropdown.
- Add Prefix Icon: The desired prefix icon can be configured from here. It can be used from Google fonts and icons and also from other sources.
- Add Suffix Icon: The desired suffix icon can be configured from here. It can be used from Google fonts and icons and also from other sources.
- Link icon with FAQ & Articles (Help Section): By enabling this, the icon can be linked to the FAQ & Articles(Help Section).
- Hide label: Enabling this hides the label text from the user's view.
- Non-Editable: The user wonβt be able to edit the field options if this toggle is enabled.
- Conditional Enable Disable: If the element is non-editable this feature will make it editable and if the element is editable this feature will make it non-editable based on the condition. Select the page and the variable on that page. Then choose from the conditions, i.e., 'When Above Variable's Value Exist's or 'When Above Variable's Value is', and choose the value of the variable for the second condition. So, when the value of the chosen variable on the selected page exists or has a certain defined value based on the condition, then this element, here, the chips can be enabled/disabled. (Note: This is not implemented yet in the RM app)

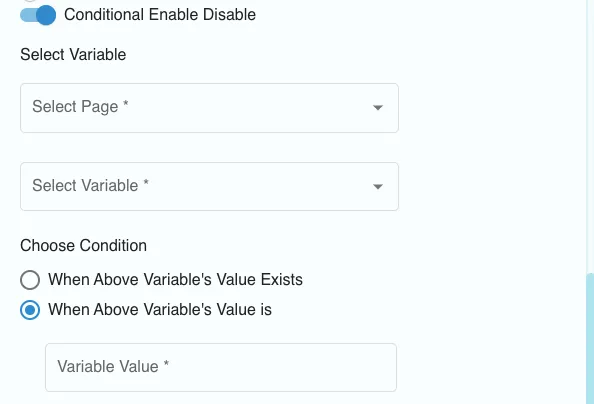

Conditional Enable Disable
ο»Ώ
- Checked: To make the option of the checkbox checked by default, this toggle can be enabled.
- ο»ΏEnable backops users to editο»Ώ: This toggle enables backops users to edit the field and override the customer's input.
- Allow single select: This toggle enables the selection of only a single option.
- Required: To make the option required, this toggle can be enabled.
- Hide this element from user: By enabling this, the checkbox element can be hidden from the userβs view.
- Add rounded corners: This toggle adds rounded corners to the chips.
Getting help
Please feel free to contact us if you have any questions, require clarification, or have ideas for how to make the documents or any of our services better.
You can reach out to us at [email protected].
