Biometric Device Guide
...
Startek FM220U L1 Device
CDSL

Windows Web : Prod and Preprod

23min

Introduction

This document aims to provide comprehensive guidance for performing the Fingerprint signing with the help of the Startek FM220U L1 device in the Windows web browser with CDSL as the Esigning Service Provider (ESP) in both the production and pre-production environment.

Contract Signing In Production Environment

To use the FM220U L1 device to perform the fingerprint signing it should have a valid subscription. You can verify the status of the subscription of the device by visiting: https://www.acpl.in.net/fm220_entry/DEV_SUB_EXTN.aspx. Enter the device serial number and it will provide the status of the subscription.

If any help is required please drop an email to [email protected] for further assistance.

Prerequisites Required:

Below are the prerequisites required to perform the Aadhaar-based fingerprint signing in the production environment with the help of the STARTEK FM220U L1 device.

1.  Windows Support Tools For L1 Devices: Download the driver

2. Windows Certified RD Service For L1 Devices: Download the driver.

3. STARTEK Biometric Device L1 (FM220U L1).

Once you have all the prerequisites, follow the steps below to set up the STARTEK FM220U L1 device to perform the signing.

Steps to follow:

Step 1: Visit https://acpl.in.net/rdservice.html and download the “Windows support Tools for L1 Device” and “Windows Certified RD Services for L1 Device”.

ACPL Webiste Interface


Step 2: Locate both the downloaded files. Double-click on the “Setup_ACPL_L1_Support” Zip file.

Windows folder Interface


Step 3: Setup_ACPL_L1_Support Windows installer package will appear. Double-click on the “Setup_ACPL_L1_Support”. An administrator window will appear. Click on “Yes”.

Windows folder Interface


Step 4: An ACPL L1 Support tool setup wizard will appear click the “Next” button.

Installation Window Interface


Step 5: Select “Everyone”. Leave the folder location as default. Click the “Next” button.

Installation Window Interface


Step 6: A confirmation window will appear. Click the “Next” button.

Installation Window Interface


Step 7: The ACPL L1 Support tools for RD Service installation will start. Please wait for a few seconds.

Installation Window Interface


Step 8: Once installation is complete. A confirmation popup window will appear. Click the “Close” button.

Installation Window Interface


Step 9: Look for the Setup_ACPL_L1_RDservice which is downloaded. Double-click on the “Setup_ACPL_L1_RDservice”.

Windows Folder Interface


Step 10: A Setup_ACPL_L1_RDservice Windows installer package will appear. Double-click on the “Setup_ACPL_L1_RDservice”. An administrator window will appear. Click on the “Yes” button.

Windows Folder Interface


Step 11: An ACPL L1 RD Servuce setup wizard window will appear. Click the “Next” button.

Installation Windows Interface


Step 12: A window will appear to choose the installation folder. Leave it as a default. Select “Everyone” and click the “Next” button.

Installation Windows Interface


Step 13: A confirmation window will appear. Click on the “Next” button.

Installation Windows Interface


Step 14: The ACPL L1 RD Service installation will start. Please wait for a few seconds.

Installation Windows Interface


Step 15: Once installation is complete. A confirmation popup window will appear. Click the “Close” button.

Installation Windows Interface


Step 16: Click on the search bar on the Windows taskbar. Search for the "Services" in the system.

Windows Search Interface


Step 17: Search for the ACPL L1 Registered Device. Click on “ACPL L1 Registered Device”. A side window will appear. Click on the  “Restart” the service.

Windows Service Interface


Step 18: The ACPL L1 Registered Device will restart. Please wait for a few seconds.

Windows Service Interface


Step 19: Once the process is completed. Insert the FM220U L1 Biometric device into the system. A message will appear at the bottom right corner of the screen stating “Device Inserted”.

Windows Service Interface


Step 20: Navigate to the signing link sent to the signer’s email (provided while initiating the contract).

Document image


Step 21: The pre-verification page will open, where the user needs to perform verification using a one-time OTP. Click on the “Get OTP” button.

OTP Verification Page


Step 22: The user will receive the OTP on the email provided during contract initiation.

Document image


Step 23: Enter the OTP received via email and click on the “Verify” button.

OTP Verification Page


Step 24: Upon successful verification, the user will land on the contract page. Click on the “I want to sign” button to proceed.

Contract Page


Step 25:  The CDSL Interface will open, Please wait for a second. It will automatically discover the RD Service Installed on the device.

Document image


Step 26: Once device discovery is completed. The RD service will automatically detected.

Document image


Step 27: Fill in the Aadhaar Number. Tick the consent Box.

Document image


Step 28:  Click on the “Start Capture” button to perform the signing.

Document image


Step 29: An interface will appear on the screen. Place your finger firmly on the device. The fingerprint will be automatically captured.

Document image


Step 30: The user will be automatically redirected to the signed contract where they can see their signature affixed to it. Click on “Done” to complete the signing process.

Document image


Step 31: The user will see the Success page and can click on the “Great” button or be redirected to the success URL set by the contract initiator after 5 seconds.

Success Page


Step 32:  The user will receive a confirmation email with the header “Confirmation of signing the document,” containing the signed contract.

Email Interface

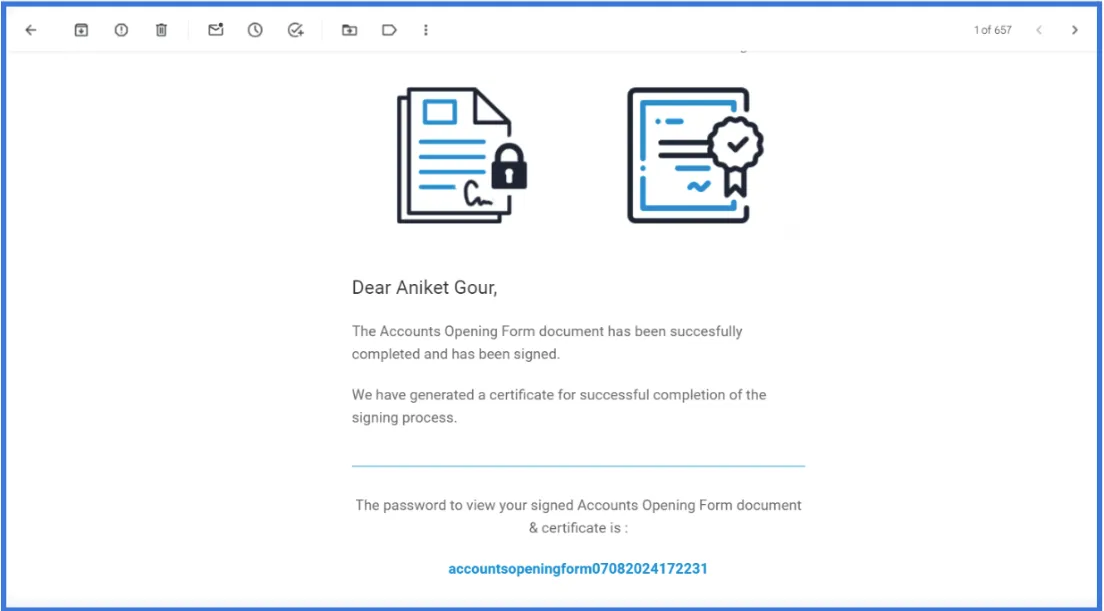

Step 33: Once all signers have signed the contract, the user will receive another email with the header “Your document signing has been finalized successfully,” containing the final signed contract and the Audit Trail Certificate.

Email Interface


Contract Signing In Pre-Production Environment

To use the FM220U L1 device to perform the fingerprint signing it should have a valid subscription. You can verify the status of the subscription of the device by visiting: https://www.acpl.in.net/fm220_entry/DEV_SUB_EXTN.aspx. Enter the device serial number and it will provide the status of the subscription.

If any help is required please drop an email to [email protected] for further assistance.

Prerequisites Required:

Below are the prerequisites required to perform the Aadhaar-based fingerprint signing in the pre-production environment with the help of the STARTEK FM220U L1 device.

1.  Windows Support Tools For L1 Devices: Download the driver

2. Windows Certified RD Service For L1 Devices: Download the driver.

3. STARTEK Biometric Device L1 (FM220U L1).

Once you have all the prerequisites, follow the steps below to set up the STARTEK FM220U L1 device to perform the signing.

Video Tutorial:

To make the setup process for fingerprint signing easier, we have included a video tutorial in the documentation. This video offers a step-by-step guide on how to configure the fingerprint device to perform secure signings.

Steps to follow:

Step 1: Visit https://acpl.in.net/rdservice.html and download the “Windows support Tools for L1 Device” and “Windows Certified RD Services for L1 Device”.

ACPL Webiste Interface


Step 2: Locate both the downloaded files. Double-click on the “Setup_ACPL_L1_Support” Zip file.

Windows folder Interface


Step 3: Setup_ACPL_L1_Support Windows installer package will appear. Double-click on the “Setup_ACPL_L1_Support”. An administrator window will appear. Click on “Yes”.

Windows folder Interface


Step 4: An ACPL L1 Support tool setup wizard will appear click the “Next” button.

Installation Window Interface


Step 5: Select “Everyone”. Leave the folder location as default. Click the “Next” button.

Installation Window Interface


Step 6: A confirmation window will appear. Click the “Next” button.

Installation Window Interface


Step 7: The ACPL L1 Support tools for RD Service installation will start. Please wait for a few seconds.

Installation Window Interface


Step 8: Once installation is complete. A confirmation popup window will appear. Click the “Close” button.

Installation Window Interface


Step 9: Look for the Setup_ACPL_L1_RDservice which is downloaded. Double-click on the “Setup_ACPL_L1_RDservice”.

Windows Folder Interface


Step 10: A Setup_ACPL_L1_RDservice Windows installer package will appear. Double-click on the “Setup_ACPL_L1_RDservice”. An administrator window will appear. Click on the “Yes” button.

Windows Folder Interface


Step 11: An ACPL L1 RD Servuce setup wizard window will appear. Click the “Next” button.

Installation Windows Interface


Step 12: A window will appear to choose the installation folder. Leave it as a default. Select “Everyone” and click the “Next” button.

Installation Windows Interface


Step 13: A confirmation window will appear. Click on the “Next” button.

Installation Windows Interface


Step 14: The ACPL L1 RD Service installation will start. Please wait for a few seconds.

Installation Windows Interface


Step 15: Once installation is complete. A confirmation popup window will appear. Click the “Close” button.

Installation Windows Interface


Step 16: Click on the search bar on the Windows taskbar. Search for the "Services" in the system.

Windows Search Interface


Step 17: Search for the ACPL L1 Registered Device. Click on “ACPL L1 Registered Device”. A side window will appear. Click on the  “Restart” the service.

Windows Service Interface


Step 18: The ACPL L1 Registered Device will restart. Please wait for a few seconds.

Windows Service Interface


Step 19: Once the process is completed. Insert the FM220U L1 Biometric device into the system. A message will appear at the bottom right corner of the screen stating “Device Inserted”.

Windows Service Interface

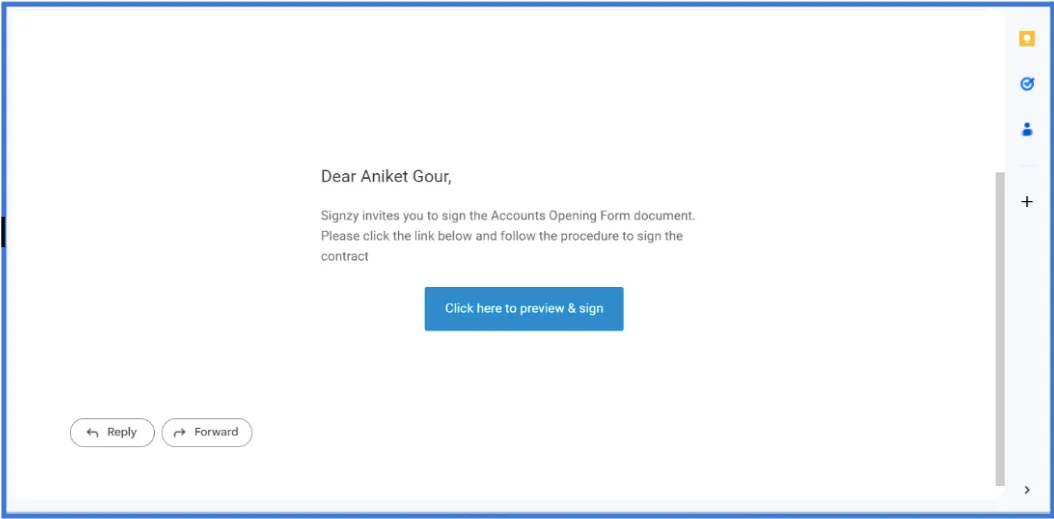

Step 20: Navigate to the signing link sent to the signer’s email (provided while initiating the contract).

Email Interface


Step 21: The pre-verification page will open, where the user needs to perform verification using a one-time OTP. Click on the “Get OTP” button.

OTP Verification Page

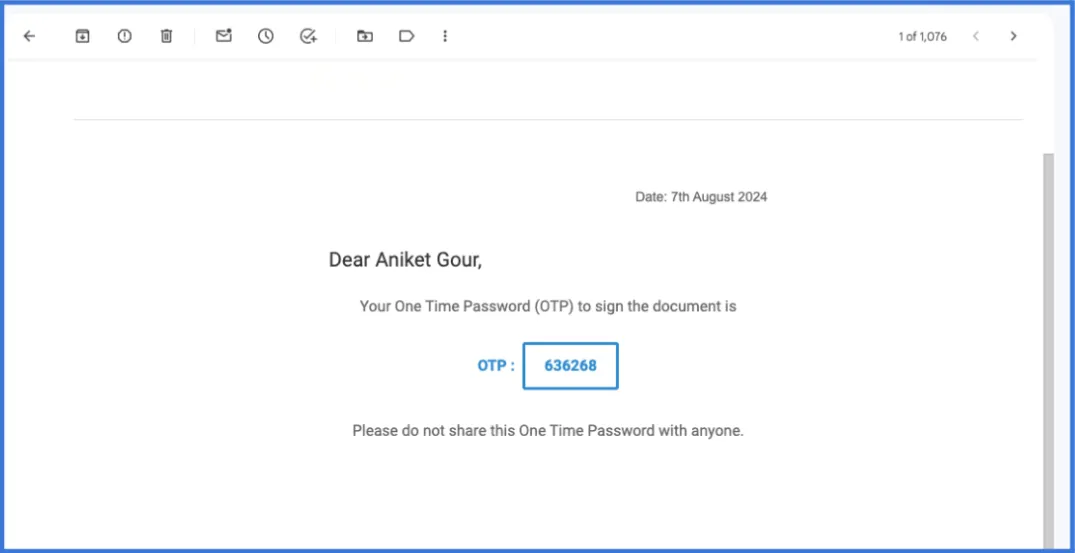

Step 22: The user will receive the OTP on the email provided during contract initiation.

Email OTP Interface


Step 23: Enter the OTP received via email and click on the “Verify” button.

OTP Verification Page


Step 24: Upon successful verification, the user will land on the contract page. Click on the “I want to sign” button to proceed.

Contract Page


Step 25:  The CDSL Interface will open, Please wait for a second. It will automatically discover the RD Service Installed on the device.

Document image


Step 26: Once device discovery is completed. The RD service will automatically detected.

Document image


Step 27: Fill in the Aadhaar Number. Tick the consent Box.

Document image


Step 28:  Click on the “Start Capture” button to perform the signing.

Document image


Step 29: An interface will appear on the screen. Place your finger firmly on the device. The fingerprint will be automatically captured.

Document image


Step 30: The user will be automatically redirected to the signed contract where they can see their signature affixed to it. Click on “Done” to complete the signing process.

Document image


Step 31: The user will see the Success page and can click on the “Great” button or be redirected to the success URL set by the contract initiator after 5 seconds.

Success Page


Step 32:  The user will receive a confirmation email with the header “Confirmation of signing the document,” containing the signed contract.

Email Interface

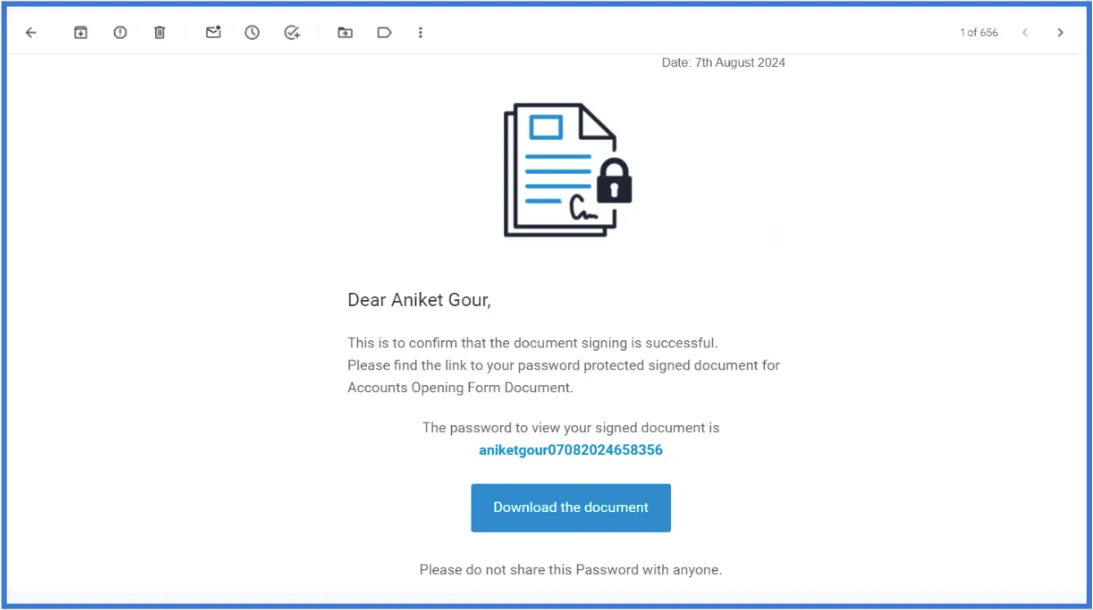

Step 33: Once all signers have signed the contract, the user will receive another email with the header “Your document signing has been finalized successfully,” containing the final signed contract and the Audit Trail Certificate.

Email Interface
