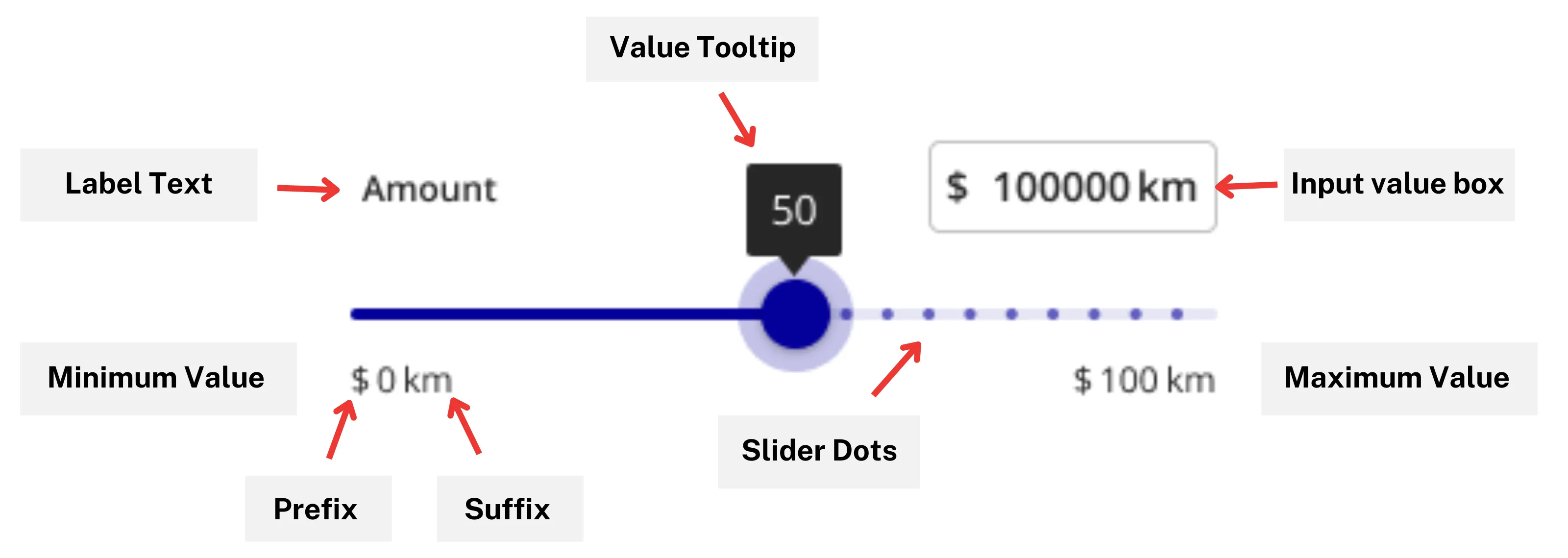

The slider element is an item in which responses are made by sliding a control along a continuous line. Users can drag the slider to pick a number from a range that you specify.

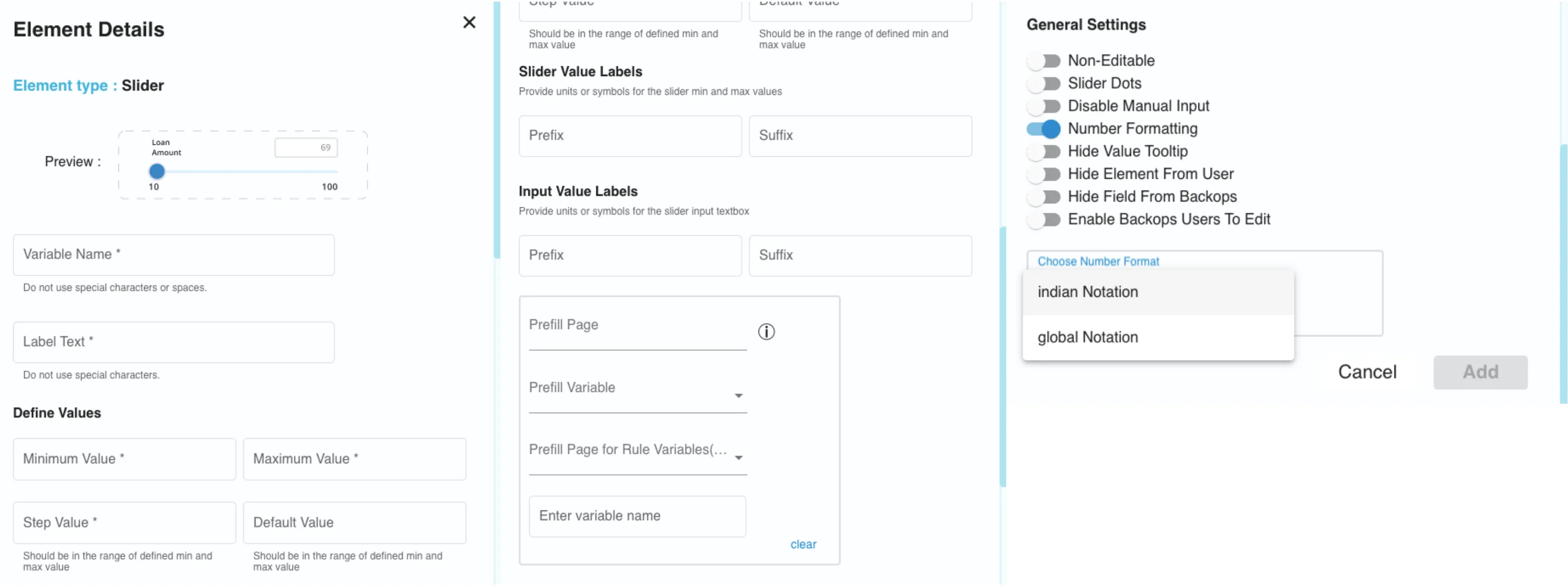

Element Details of Slider
ο»Ώ
- Variable Name: The variable that is used to identify the element is entered here.
- Label text: Label text is entered here.
- Define Values
- Minimum Value: The minimum value of the slider is entered here.
- Maximum Value: The maximum value of the slider is entered here.
- Step Value: The step specifies the size of each movement (an increment or jump between values) of the slider control. The value of each step is entered here.
- Default Value: The default value of the slider is entered here.
- Slider Value Labels
- Prefix: The prefix for the value in the slider is entered here.
- Suffix: The suffix for the value in the slider is entered here.
- Input Value Labels
- Prefix: The prefix for the value in the input value box is entered here.
- Suffix: The suffix for the value in the input value box is entered here.
- Prefill Page: The page from the flow that we want to pull the prefill data can be chosen.
- Prefill Variable: The prefill variable can be chosen from the prefill page using this drop-down.
- Prefill Page for Rule Variable (Arithmetic): This dropdown is used to select the rule page forΒ prefill items.
- Enter variable name: This is used to enter the prefill rule page variable.
- Non-Editable: To enable whether to make the field input value non-editable or not.
- Slider dots: This toggle can enable/disable the dots on the slider for each step.
- Disable Manual Input: This toggle can disable manual input of the value in the box.
- Number Formatting: This toggle can enable/disable the number formatting of the values. The formatting can be chosen from Indian and global notations according to requirements.
- Hide Value Tooltip: This toggle hides the value tooltip that appears on the slider.
- Hide Element From User: This toggle is given to enable the option to hide the selected element from the userβs view.
- ο»ΏEnable backops users to editο»Ώ: This toggle enables backops users to edit the field and override the customer's input.
ο»Ώ
Getting help
Please feel free to contact us if you have any questions, require clarification, or have ideas for how to make the documents or any of our services better.
You can reach out to us at [email protected].
