Dropdown
A Dropdown menu is a list of choices that only appears in response to user interaction, such as clicking or lingering over the menu. Users can select any of the mentioned options by clicking on the Dropdown menu when it appears.

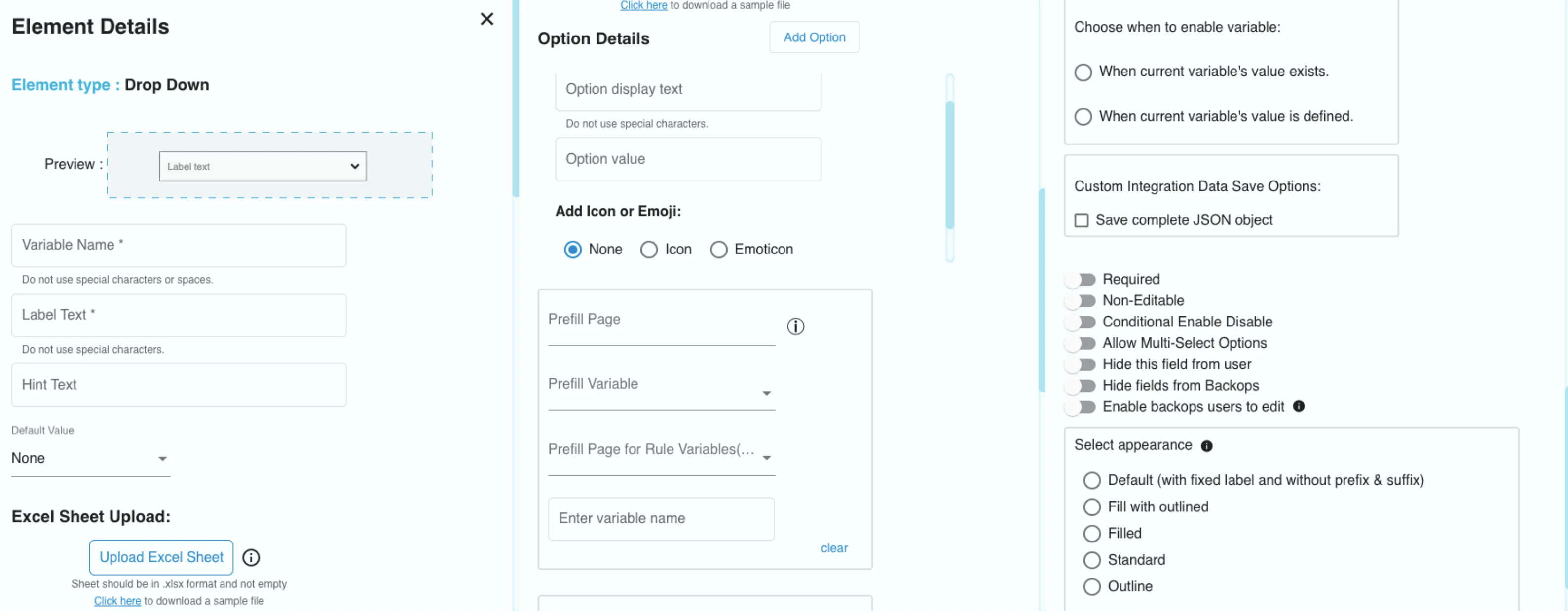

- Variable Name: The variable that is used to identify the element is entered here.
- Label Text: Label text is entered here.
- Hint Text: This is used so that the user can better understand what the element is used for.
- Default Value: This field is used to define the default value.
- Upload Excel File: We can upload an Excel file for multiple options in the dropdown.
- Option display text: The text to be displayed for the option.
- Option value: We put value for the mapping.
- Add Icon or Emoji: Icons or emojis can be added as a prefix or suffix to the checkbox option(s) too to give visual appeal to the input elements. Whether an icon, emoji, or none has to be added can be chosen by selecting the radio button. It can be used from Google fonts and icons and also from other sources.
- Prefill Page: The page from the flow that we want to pull the prefill data can be chosen.
- Prefill Variable: The prefill variable can be chosen from the prefill page using this drop-down.
- Prefill Page for Rule Variables: This option is used to choose the rule page for prefill items.
- Enter variable name: This is used to enter the prefill rule page variable.
This is used to select when to enable the variable depending on the condition such as:
- To enable when the current variableβs value exists.
- To enable when the current variableβs value is defined.
This option is used to enable or disable saving the complete JSON object
- Required: To enable whether to make the variable required or not.
- Non-Editable: To enable whether to make the field input value non-editable or not.

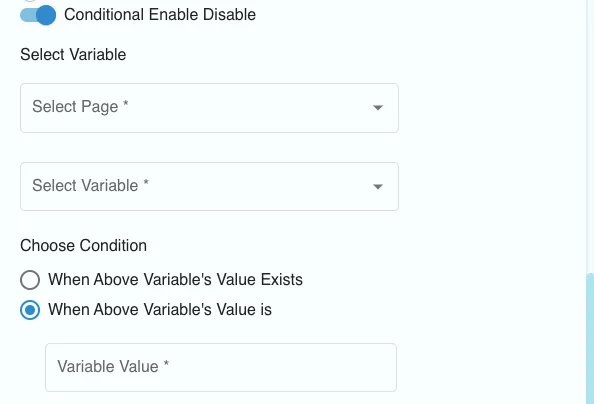

- Conditional Enable Disable: If the element is non-editable this feature will make it editable and if the element is editable this feature will make it non-editable based on the condition. Select the page and the variable on that page. Then choose from the conditions, i.e., 'When Above Variable's Value Exist's or 'When Above Variable's Value is', and choose the value of the variable for the second condition. So, when the value of the chosen variable on the selected page exists or has a certain defined value based on the condition, then this element, here, the dropdown menu can be enabled/disabled. (Note: This is not implemented yet in the RM app)
- Allow Multi-Select Options: This toggle allows selecting multiple options from the dropdown menu.
- Hide this field from the user: This toggle is given to enable the option to hide the selected field of the element from the userβs view.
- ο»ΏEnable backops users to editο»Ώ: This toggle enables backops users to edit the field and override the customer's input.

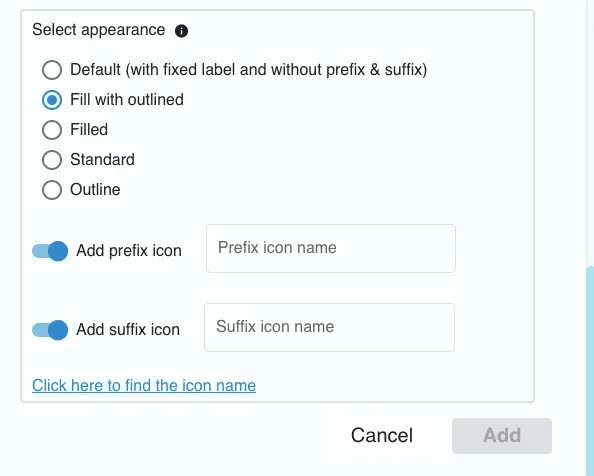

The appearance of the dropdown menu can be customized by choosing the radio button from various options present. If nothing is selected here, the global settings will be applied. To override global settings for the particular field any one of the given options has to be selected. We can choose from the following options:
- Default (with fixed label and without prefix and suffix)
- Fill with outlined
- Filled
- Standard
- Outline
The default variant does not have prefix or suffix options. All the other variants have the option to select prefix and suffix icons. The icon can be added by entering the name of the icon in the text box that appears on turning the toggle(s) on. The name of the icon can be found by clicking on 'Click here to find the icon name'
